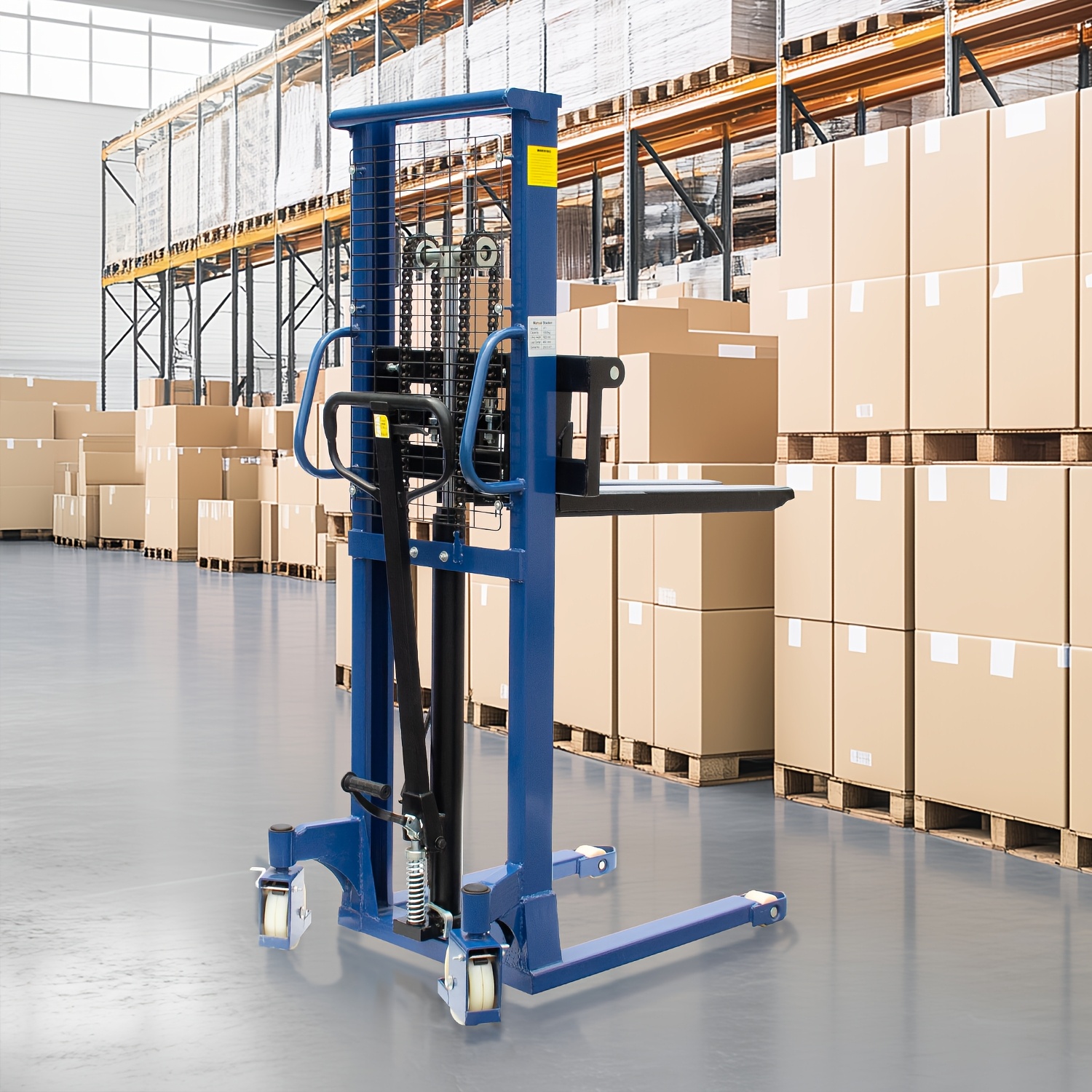

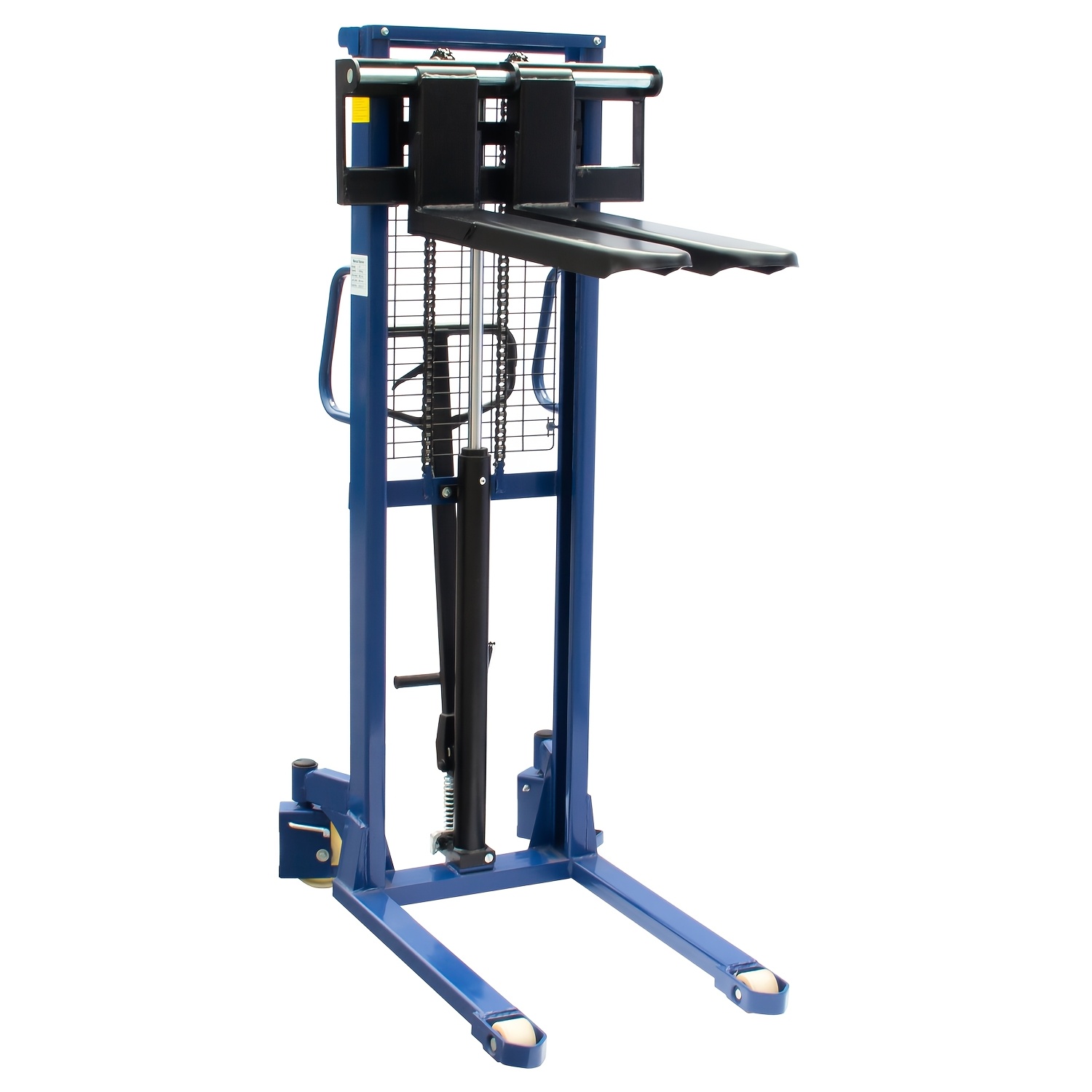

Heavy-Duty Manual Hydraulic Pallet Stacker

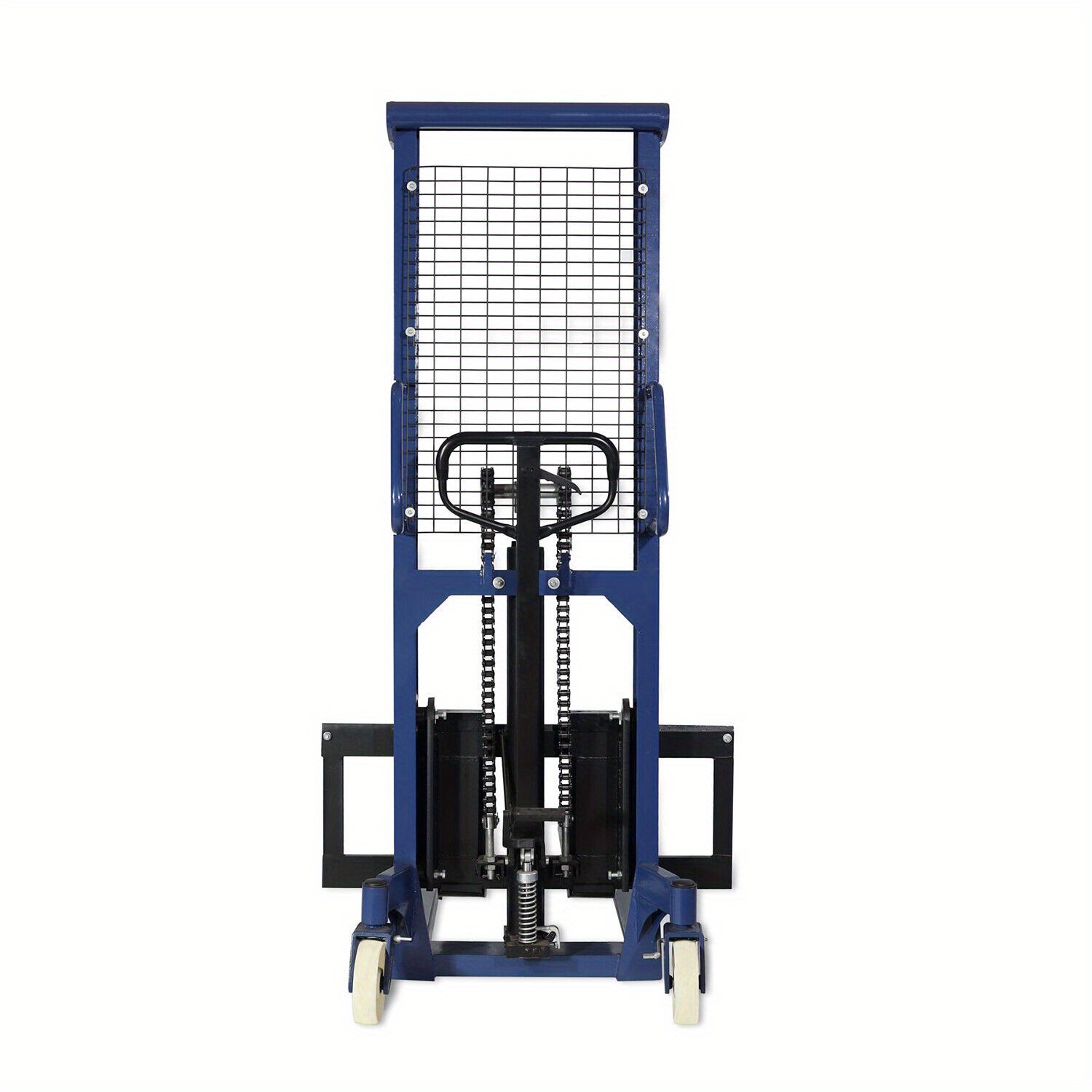

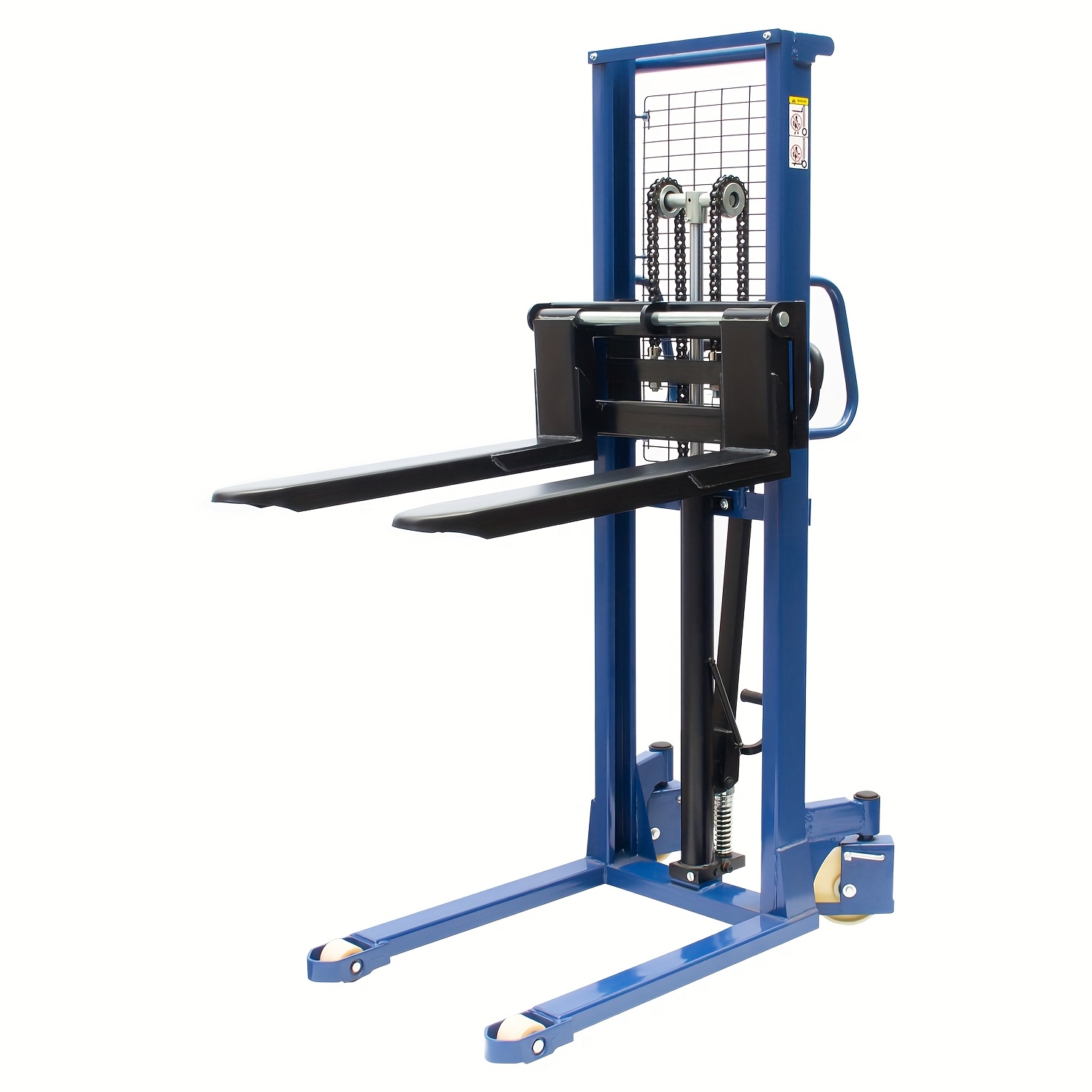

Important: This stacker with fixed legs is exclusively designed for use with block pallets and is not compatible with stringer pallets. It has a weight capacity of 2200 lbs and features adjustable lifting and lowering speeds. The lift height can be adjusted between 3.78 inches and 63 inches. A metal grid is in place to protect the user from the lift chains. The stacker is built with a high-quality steel mast and robust steel construction, ensuring its rigidity and durability.

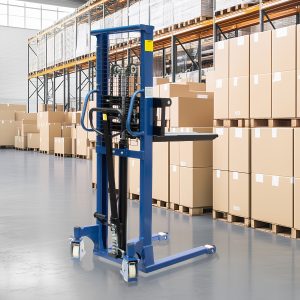

The professional hydraulic hand stacker is the ideal tool for all kinds of lifting and loading operations. The enhanced fork manufacturing process ensures its stability in heavy working conditions, and the adjustable fork design makes it capable of lifting and loading various types and sizes of materials and pallets. Wide Application: We can use hand winch lifts in warehouses, factories, shipping facilities, supermarkets, and other industrial environments. For example, lift and transport loads f

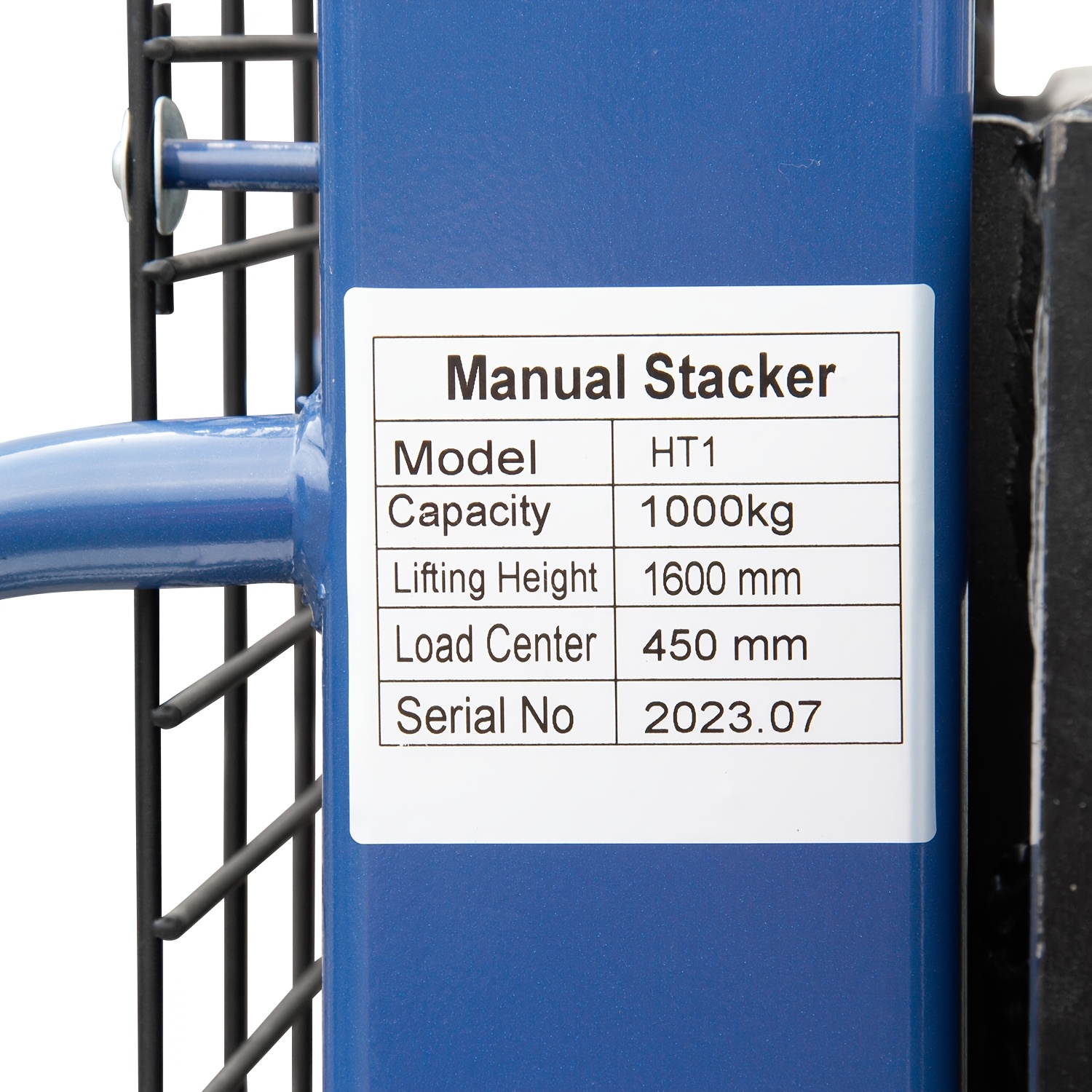

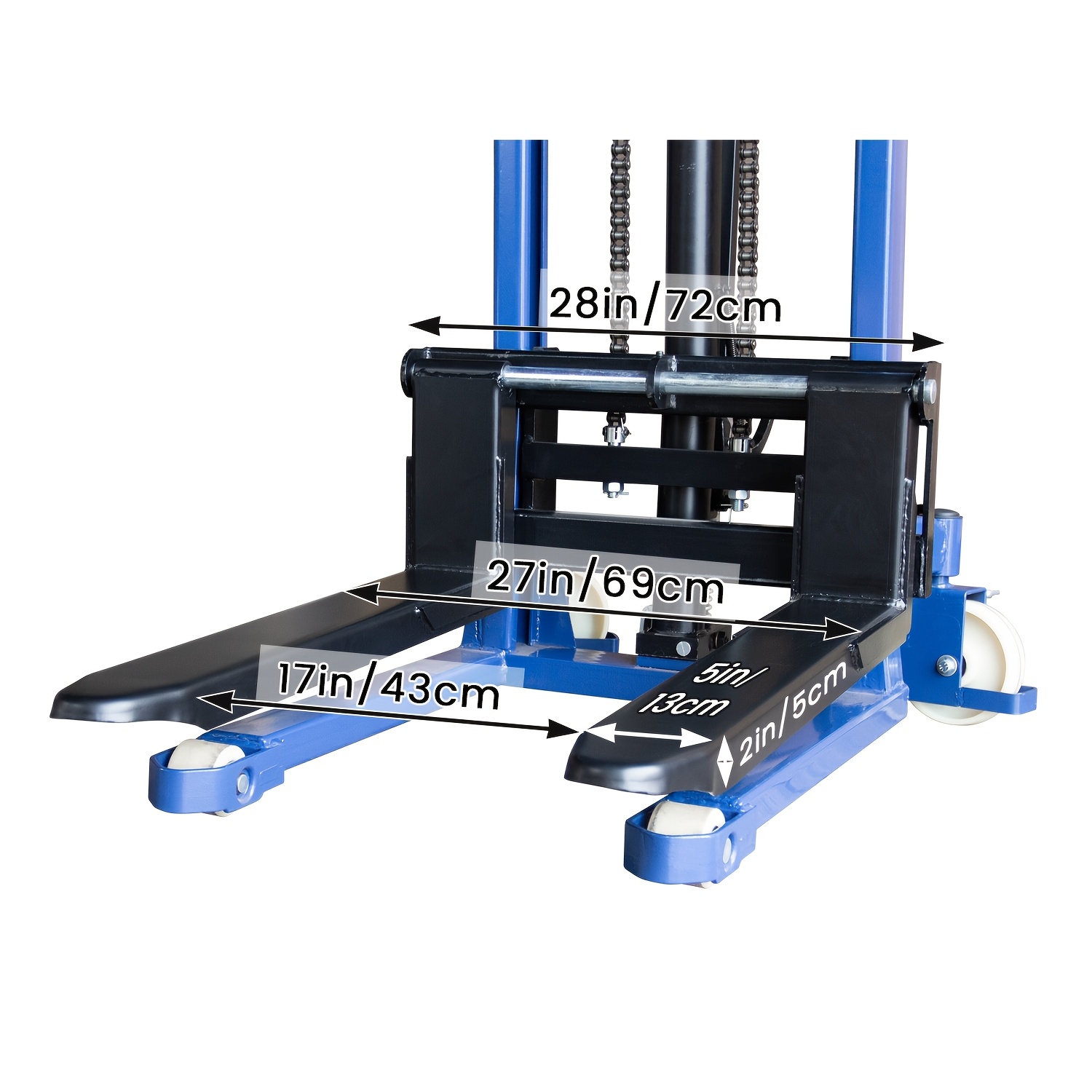

Professional manual hydraulic stacker Lifting & Lowering Speed: Adjustable Rated Capacity(1000 KG): 2205 LBS Net Weight(200kg): 440.92 LBS Lifting Height(96-1600 mm): 3.78”-63” Overall Length(1424 mm): 56.01” Overall Width(720 mm): 28.35” Overall Height(1980 mm): 77.95” Fork Length(900 mm): 35.43” Fork Width(133 mm): 5.24” Distance of Fork Max.(680/550 mm): 27”/22” Distance of Fork Min.(28mm): 11” Steering Radius(125cm): 49.21” Load Wheel(8cm)：3.15” Caster Wheel(18cm)：7.1”
